Molecular Descriptors Family on QSAR Modeling of Quinoline-based Compounds Biological Activities

by Lorentz JÄNTSCHI and Sorana BOLBOACĂ

Structure - activity relationships allow explaining of biological activities and can suggest the synthesizing of new active compounds.

The idea is to create a unitary approach, based on a minimal set of well-known truths, capable to generate an efficient model of activity behavior depending on molecular structure.

A set of 15 Quinoline based compounds was taken into study.
Quinolines, heterocyclic compounds, are an aromatic nitrogen compounds characterized by a double-ring structure contains a benzene and a pyridine, with antiseptic, antipyretic, and antiperiodic properties, widely used as a parent compound to make drugs.
Mutagenicity and cytotoxicity of quinolines in Salmonella typhimurium was used as investigated activities.

A new original set of molecular descriptors, called Molecular Descriptors Family (MDF) was used to make the Quantitative Structure - Activity Relationship study.
The MDF is of pure structural nature and take into account both geometrical and topological model of molecules. The MDF use sets of atomic properties, distance metrics, interaction descriptors, overlapping descriptors methods, molecular fragmentation criterions, overall fragmental descriptors superposing methods, and linearization procedures in order to produce a number of 787968 MDF members with different calculation formulas.

Atomic property (p) can be one of: M (mass), Q(charge), C(cardinality), E(electronegativity), G(group electronegativity), H(count of directly bounded hydrogen's);
Distance metric (d) can be one of: t(topological) and g(geometrical);
Interaction descriptor (implies two participants) can be one of: D(d), d(1/d), O(p₁), o(1/p₁), P(p₁p₂), p(1/p₁p₂), Q(√p₁p₂), q(1/√p₁p₂), J(p₁d), j(1/p₁d), K(p₁p₂d), k(1/p₁p₂d), L(d√p₁p₂), l(1/d√p₁p₂), V(p₁/d), E(p₁/d₂), W(p₁²/d), w(p₁p₂/d), F(p₁²/d²), f(p₁p₂/d²), S(p₁²/d³), s(p₁p₂/d³), T(p₁²/d⁴), t(p₁p₂/d⁴);
The overlapping descriptors interaction can be one of: R and r (threat descriptors as scalars, compute resultant relative to a given atom j and respectively conventional origin), M and m (first calculate and then use the property center similarly to well-known mass center calculations), and D and d (threat descriptors as Cartesian vectors);
Molecule fragmentation are made on pairs of atoms using one of: m (minimal fragments), M (maximal fragments), D (Szeged distance based fragments) and P (Cluj shortest paths based fragments);
Molecular descriptor cumulates overall fragmental descriptors values by using one of:
- Conditional group: m (smallest), M (highest), n (smallest absolute), N (highest absolute);
- Averages group: S (sum), A(average of all valid values), a(S divided by number of all fragments), B (average first by atom and then my molecule), b (by bond);
- Geometric group: P (multiplication), G(geometric mean, valid fragments), g (adjusted G), F (by atom and then by molecule), f (by bond);
- Harmonic group: s (harmonic sum), H (harmonic mean, valid fragments), and similarly to above h, I, and i.

MDF formulas and names

MDF values enter in QSAR modeling after a transformation (linearization procedure, one of: I (identity, no change), i (inverse), A (absolute), a (inverse of absolute), L (logarithm of absolute), l (logarithm).
The mathematical formula of the calculation is like: L_D(S_F({I_M(A_P,D_O,D_F(A_P,D_O),f) | f is from F_C(Molecule)})) where L_D is linearization descriptor, S_F is overall superposing formula, I_M is interaction model, A_P is atomic property, D_O is distance operator, D_F is descriptor formula and F_C is fragmentation criteria.
As result, a number of 787968 MDF members are calculated: 2(D_O)*6(A_P)*24(D_F)*6(I_M)*4(F_C)*19(S_F)*6(L_D)
Labeling obey the construction of the descriptor.
Thus, AiPdtQt are from: D_O = t, A_P = Q, D_F = t, I_M = d, F_C = P, S_F = i, L_D = A
Not all MDF members has real (computable) and not identical values. More, not all of them are distinct each from other. A procedure to clean the MDF set was implemented and applied.

Mol	Compound name	Cytotoxicity	Mutagenicity
t01	8-methyl-quinoline	-3.39	-0.71
t02	8-aminoquinoline	N/A	-0.24
t03	8-hydroxyquinoline	-2.30	0.79
t04	8-chloroquinoline	-2.38	0.37
t05	8-ethylquinoline	-2.73	0.4
t06	8-cyanoquinoline	-3.59	-0.46
t07	8-ureidoquinoline	-3.71	-1.93
t08	8-fluoroquinoline	-3.67	-0.55
t09	8-sulfonamidoquinoline	-4.45	-2.82
t10	8-benzyloxyquinoline	-1.41	0.92
t11	quinoline	-3.12	0.09
t12	8-methoxyquinoline	-3.75	-1.5
t13	8-ethoxyquinoline	-3.42	-1.05
t14	8-quinolinol acetate	-2.62	-0.26
t15	N-8-quinolinyl acetamide	-3.64	-1.09

For the Quinolines set, only 319867 (all 15, Mutagenicity) and 319827 (14 of 15, Cytotoxicity) has real and not identical values and only 102608 (15) respectively 103411 (14) are distinct each from other. The selected members (102608 for Mutagenicity and 103411 for Cytotoxicity) enter into multiple linear regression analysis. Mono-varied and bi-varied models were applied. At the end of all pair’s computations (for bi-varied model, 5264149528 pairs for Mutagenicity), the best QSAR models were selected and presented.

You can look at the web server generated results for Mutagenicity and Cytotoxicity.

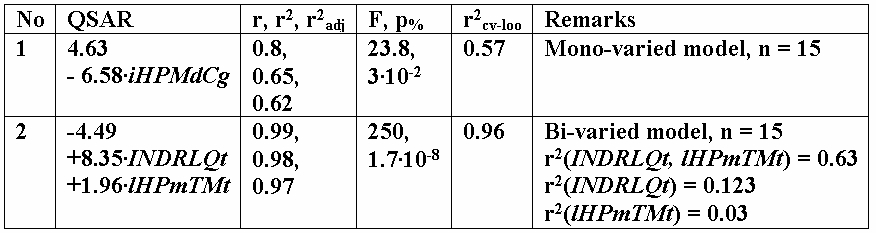

MDF QSARs for Mutagenicity of Quinolines

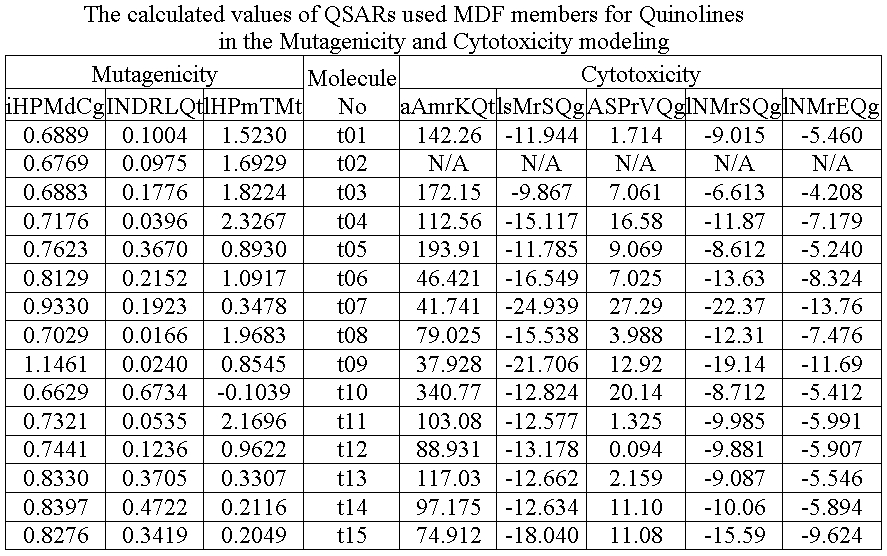

*MDF Calculated values

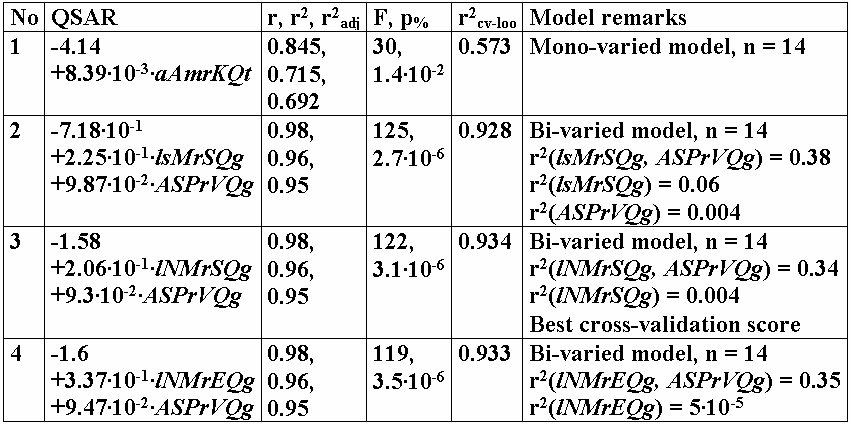

MDF QSARs for Cytotoxicity of Quinolines

*MDF Calculated values

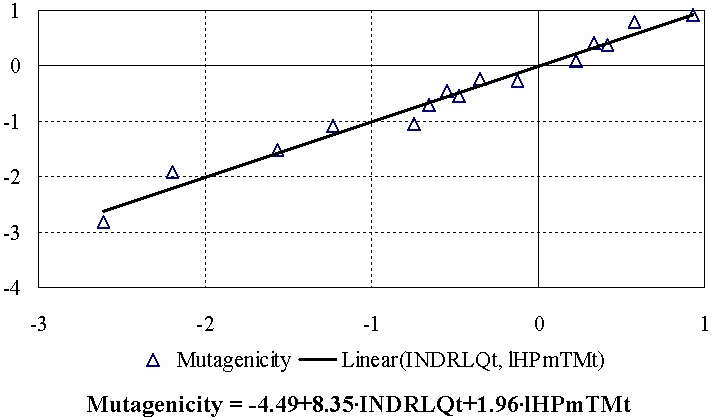

Plot of best MDF QSAR for Mutagenicity of Quinolines

*Server generated file

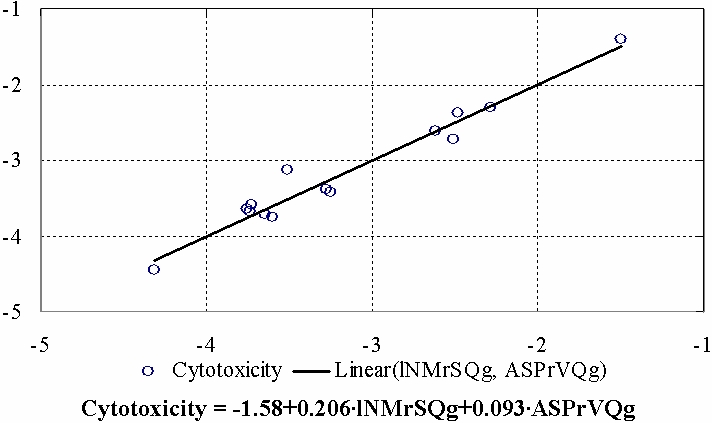

Plot of best MDF QSAR for Cytotoxicity of Quinolines

*Server generated file

As are expected, a pair of MDF members provides significantly better explains of the activity (mutagenicity and cytotoxicity) compared with single member. More, comparing with previous reported results (*)
- Mutagenicity, n = 13 - two Quinolines omitted, r² = 0.87 vs. 0.98 (our result with MDF members);
- Cytotoxicity, n = 13 - one Quinoline omitted, r² = 0.8 vs. 0.96 (our result with MDF members);
the MDF produces better explanation of structure-activity relationship.
(*) Smith J.C., Hansch C., Morton J.M., QSAR treatment of multiple toxicities: the mutagenicity and cytotoxicity of quinolines, Mutation Research, 1997, 379, p. 167-175.
The absence of the best descriptor from the mono-varied model from the pair(s) of best bi-varied model, the almost null correlation between every single descriptor from bi-varied model and activity, and the presence of statistically significant link between descriptors from the best bi-varied pairs demonstrates that it is no link between using of orthogonal descriptors (Principal and/or Dominant Component Analysis) and QSAR modeling.
In bi-varied QSARs, when is more than one model that obtains the same values of correlation coefficient, the cross-validation score allows to choose the best model.
Even if using of MDF in QSAR modeling is time consuming, it has doubtless advantages, such as better QSAR and a much closer structure activity explanation.
Best bi-varied QSAR model of Mutagenicity uses the INDRLQt and lHPmTMt members, and is statistically significant (p = 1.7·10^-8 %).
All three best of bi-varied QSARs of Cytotoxicity use members which consider the geometrical shape (g) as well as the atomic property represented by the partial change (Q) and are statistically significant (p ≈ 3·10^-6 %).
The obtained QSAR models allow making of important remarks on structural nature of Mutagenicity and Cytotoxicity activities.

Mutagenicity of Quinolines is almost of molecular topology nature and is strongly dependent on both atomic mass and partial atomic charge (99% for bi-varied MDF QSAR model with INDRLQt and lHPmTMt members).
Cytotoxicity of Quinolines is strongly dependent on the partial change atomic property and its behavior is almost of molecular geometry nature (98% for bi-varied MDF QSAR model with lNMrSQg and ASPrVQg members).

Online software: Learning vs. Test Sets
Other MDF results: (most of them unpublished yet results)

MDF Refs

MDF - A New QSAR/QSPR Molecular Descriptors Family IChr10
Water Activated Carbon Organics Adsorption Structure-Property Relationships 36638
QSPR on Estimating of Polychlorinated Biphenyls Relative Response Factor using Molecular Descriptors Family PCB_rrf
Delphi Client - Server Implementation of Multiple Linear Regression Findings: a QSAR/QSPR Application 23159
This (ECCC10#4) as Power Point Presentation Ta395+Tox395

The generic structure of the database and procedure used for MDF generation on any data set. The set tables generation is a server side task and QSARs findings is a multi-client task.

The End.
